Fiac pump AB598

Description

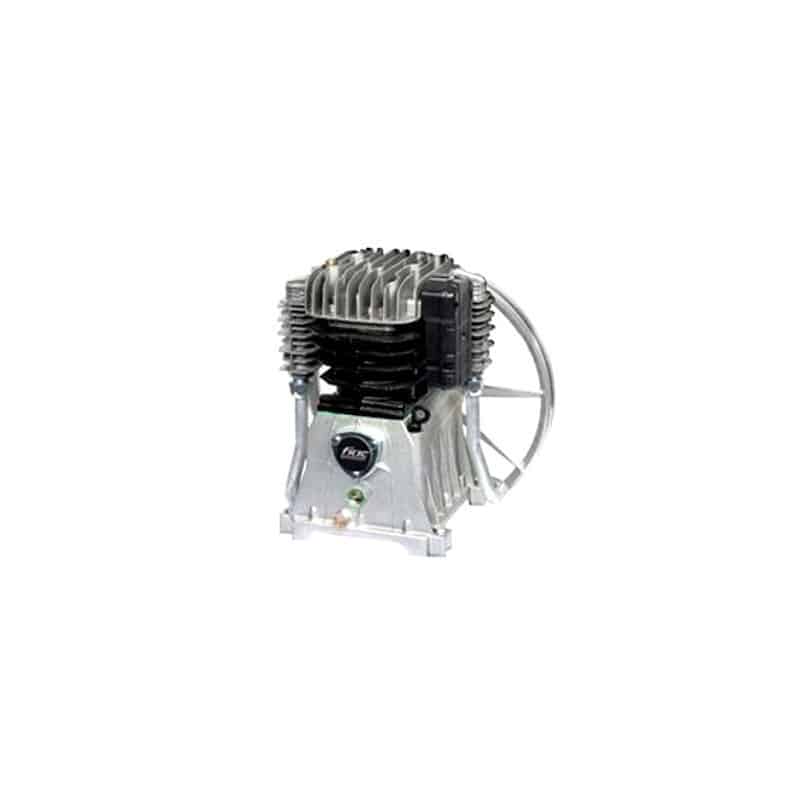

Pumping unit for air compressor Mod. AB 598

Pumping unit for air compressors Fiac 150-270 Liters lubricated two-stage belt drive.
– System-head with large ciindro fins for heat dissipation
– Ductile iron crankshaft carefully equiibrato for improved stability
– Stainless steel valves with high flow of air
– Conveyor ventilation
– Flywheel with high air flow to concentrated flow
– Suction filter equipped with high-yield maze to the decrease in noise level
– Suitable for both single-phase motors (220V) and three phase (400V)
– Splash lubrication, forced ventilation
– Die-cast aluminum valve plate
– Ciindro monobloccoin iron
– Manifold for refrigeration del’aria final input to the tank
– Multi stage 4-5,5 HP Model

Technical data:

– Code AB 598
– Cilinders  : 2
– For engines: 3-4 kw / 5.5 Hp
– Step Air: 540-598 L/min.
– Max Bar: 10/145 P.S.I
– RPM: 1170-1270 RPM
– Noise: 76 dB
– Pack Weight: kg 19

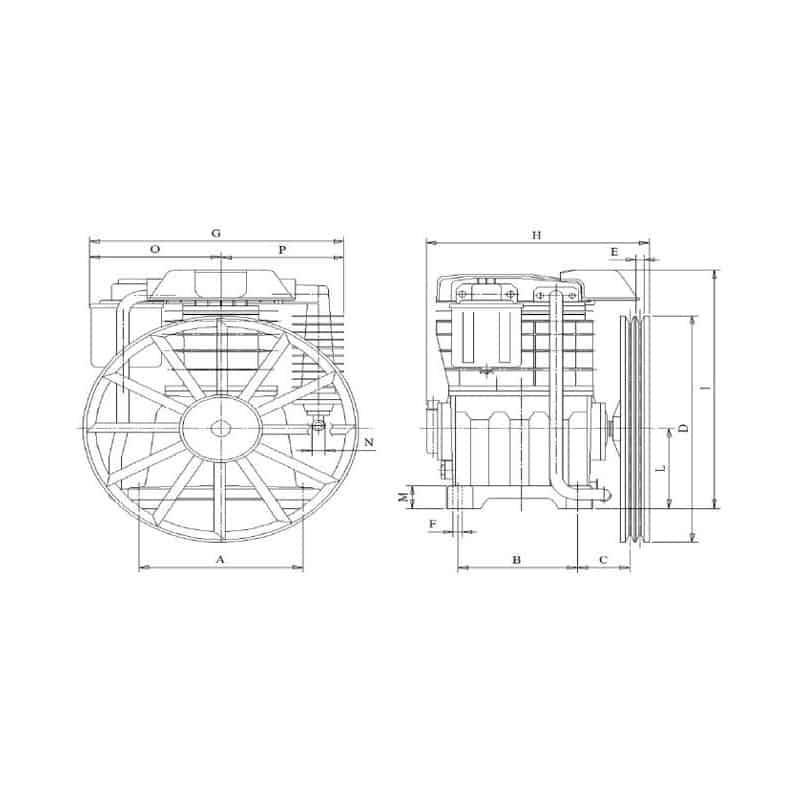

Size of pump:

– overal 400 x 330 x 440 mm (deap x wild x high)

– mounting holes : 220 x 183 mm (A x B)

– flywheel size 400mm
