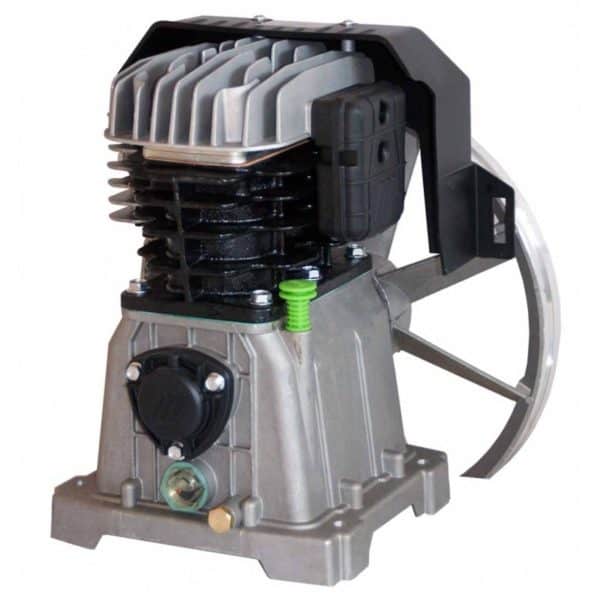

Fiac Pump AB515

Description

Pumping unit for air compressor Mod. AB 415/515

Pumping unit for air compressors Fiac/Sealy/Snap-On 150/200/300 Liters lubricated single-stage belt drive.
– System-head with large cilnder fins for heat dissipation
– Stainless steel valves with high flow of air
– Conveyor ventilation
– Flywheel with high air flow to concentrated flow
– Suction filter equipped with high-yield maze to the decrease in noise level
– Suitable for both single-phase motors (220V) and three phase (400V)
– Splash lubrication, forced ventilation
– Die-cast aluminum valve plate
– Single stage 3 or 4 HP Model

Technical data:

– Code AB 415/515 :
–  Cilinders  : 2
– For engines: 3 or 4 Hp Motor
– Step Air: 482 L/min.

-18CFM

– Max Bar: 10/145 P.S.I
– RPM: 1270 RPM
– Noise: 76 dB
– Pack Weight: kg 12

Pump is brand New in box, supplied with 1litre of Oil
