Description

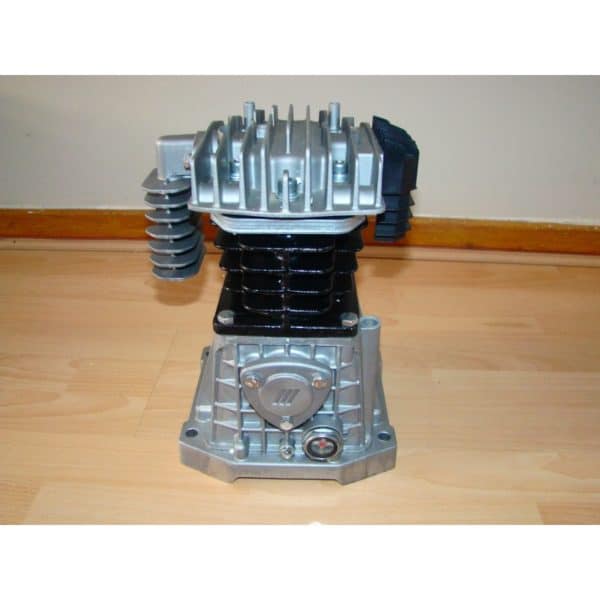

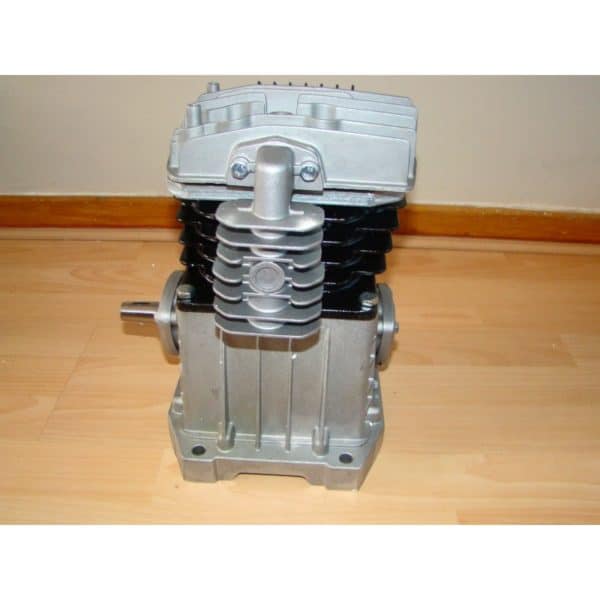

Pumping unit for air compressor Mod. AB 360
Pumping unit for Air Compressors 50-100-150 Liters lubricated single-stage belt drive.
– System-head with large fins for heat dissipation
– iron crankshaft for improved stability
– Stainless steel valves with high flow of air
– Conveyor ventilation

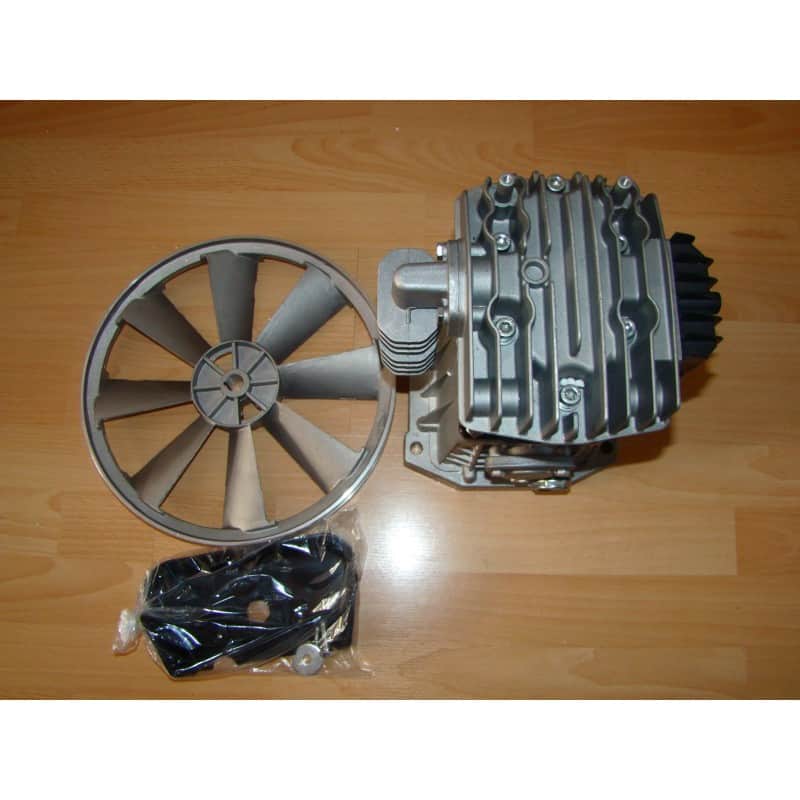

– Flywheel with high air flow to concentrated flow
– Suction filter equipped with high-yield maze to the decrease in noise level
– Suitable for both single-phase motors (220V) and three phase (400V)
– Splash lubrication, forced ventilation
– cast aluminum valve plate
– Manifold for refrigeration input to the tank
– Single stage 3 HP Model
Technical data:
– Code AB 360
– Cilinders : 2
– For engines: 3 Hp
– Air Flow: 350 L/min.
– Max Bar: 10/145 P.S.I
– RPM: 1500 RPM
– Noise: 76 dB
– Pack Weight: kg 12
